Carbide & HSS Rotary Files

Firstly, Jarvis HSS and carbide rotary files are without question the most durable in production. Consequently, they are popular in aerospace, mold making, tool room and die shop use. Thus, repeated tests have proven Jarvis rotary files outlast competitive files.

Secondly, their versatility of application ranges. Accordingly, from machinable or grind-able materials to plastic or hardened steel. As a result, they have become firmly established among those who appreciate quality.

In conclusion, Jarvis offers a variety of fluting alternatives for your application. Jarvis can hand pick a tool that can get the job done. Your project depends on the material removal rate and finish requirements. Trust Jarvis for all of your  needs.

In addition, standard fluting will be supplied. Consequently, unless otherwise specified.

Finally, for more information on Carbide Rotary Files, contact us today.

AVAILABLE MATERIALS

CARBIDE offers superior durability and higher speed.
HIGH SPEED STEEL ideal for select/niche uses and aluminum applications.

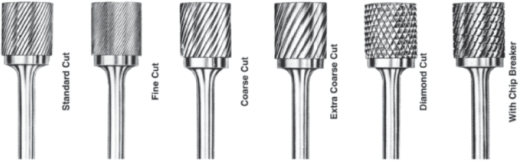

AVAILABLE FLUTINGS

STANDARD
STANDARD + CHIP BREAKER
DIAMOND for tough and hardened steel dies and forgings

GRADES

STANDARD
FINE
COARSE

Carbide & HSS Rotary Files

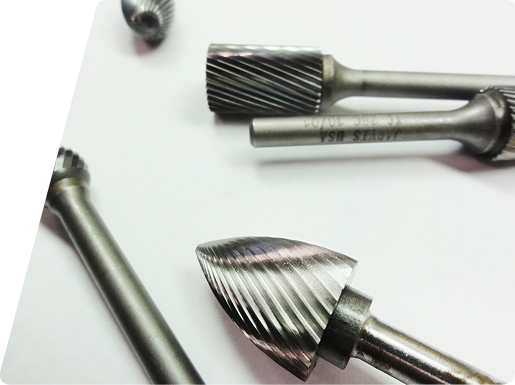

AVAILABLE SHAPES

CYLINDRICAL  |  CYLINDRICAL RADIUS END  |  BALL  |  OVAL  |  TREE RADIUS END  |  CONE  |  TREE POINTED END
CARBIDE ONLY SHAPES:  FLAME  |  CHAMFER  |  CONE RADIUS END  |  INVERTED CONE

Carbide & HSS Rotary Files

Most Popular Carbide Rotary Files:

DESCRIPTION SIZE PART NAME PART-ID SHANK MATERIAL SCTI
CYLINDRICAL(RADIUS) 3/32″ x 7/16″ JC-2 R155100 1/8″ CARBIDE SC-41
CYLINDRICAL(RADIUS) 1/8″ x  9/16″ JC-1 R155070 1/8″ CARBIDE SC-42
CYLINDRICAL(RADIUS) 1/4″ x 1/2″ JC-51 R155196 1/8″ CARBIDE SC-51
CYLINDRICAL(RADIUS) 5/32″ x 1/2″ JC-12 R155135 1/8″ or 3/16″ CARBIDE SC-52
CYLINDRICAL(RADIUS) 3/16″ x 1/2″ JC-21 R155160 1/8″ or 3/16″ CARBIDE SC-53
CYLINDRICAL(RADIUS) 3/16″ x 5/8″ JC-24 R156450 3/16″ CARBIDE SC-81
CYLINDRICAL(RADIUS) 3/16″ x 5/8″ TC-06B R157545 1/4″ CARBIDE SC-14
CYLINDRICAL(RADIUS) 1/4″ x 5/8 TC-06 R157594 1/4″ CARBIDE SC-1
CYLINDRICAL(RADIUS) 5/16″ x 3/4 TC-07A R157650 1/4″ CARBIDE SC-2
CYLINDRICAL(RADIUS) 3/8″ x 3/4″ TC-07 R157685 1/4″ CARBIDE SC-3
CYLINDRICAL(RADIUS) 7/16″ x 1″ TC-07B R157715 1/4″ CARBIDE SC-4
CYLINDRICAL(RADIUS) 1/2″ x 1″ TC-08 R157740 1/4″ CARBIDE SC-5
CYLINDRICAL(RADIUS) 5/8″ x 1″ TC-09 R157788 1/4″ CARBIDE SC-6
CYLINDRICAL(RADIUS) 3/4″ x 1″ TC-09A R157818 1/4″ CARBIDE SC-7
CYLINDRICAL(RADIUS) 1/8″ x 1/2″ TC-06A (SS) R157454 1/4″ CARBIDE SC-11
CYLINDRICAL(RADIUS) 5/32″ x 5/8″ TC-06G R157480 1/4″ CARBIDE SC-13
CYLINDRICAL(END CUTTING) 1/4″ x 5/8 TC-01 R157107 1/4″ CARBIDE SB-1
CYLINDRICAL(END CUTTING) 5/16″ x 3/4″ TC-02A R157132 1/4″ CARBIDE SB-2
CYLINDRICAL(END CUTTING) 3/8″ x 3/4″ TC-02 R157168 1/4″ CARBIDE SB-3
CYLINDRICAL(END CUTTING) 7/16″ x 1″ TC-02B R157200 1/4″ CARBIDE SB-4
CYLINDRICAL(END CUTTING) 1/2″ x 1″ TC-03 R157235 1/4″ CARBIDE SB-5
CYLINDRICAL(END CUTTING) 5/8″ x 1″ TC-04 R157272 1/4″ CARBIDE SB-6
CYLINDRICAL(END CUTTING) 3/4″ x 1″ TC-04B R157399 1/4″ CARBIDE SB-7
CYLINDRICAL(END CUTTING) 1″ x 1″ TC-05 R157429 1/4″ CARBIDE SB-9
CYLINDRICAL(END CUTTING) 1/8″ x 5/8″ TC-01A R157004 1/4″ CARBIDE SB-11
CYLINDRICAL(END CUTTING) 5/32″ x 5/8″ TC-01G R157030 1/4″ CARBIDE SB-13
CYLINDRICAL(END CUTTING) 3/16″ x 5/8″ TC-01B R157065 1/4″ CARBIDE SB-14
CYLINDRICAL(END CUTTING) 3/4″ x 1/2″ TC-04G R157326 1/4″ CARBIDE SB-15
CYLINDRICAL(END CUTTING) 3/4″ x 1/2″ TC-04A R157351 1/4″ CARBIDE SB-16
CONE(RAD. END) 1/8 x 3/8″ 8° JU-4 R156152 1/8″ CARBIDE SL-41
CONE(RAD. END) 1/8″ x1/2″ 8° JU-5 R156188 1/8″ or 3/16″ CARBIDE SL-42
CONE(RAD. END) 3/16″ x 1/4″ 14° JU-21 R156218 1/8″ or 3/16″ CARBIDE SL-53
CONE(RAD. END) 3/16 x 1/2″ 12° JU-22 R156887 1/8″ or 3/16″ CARBIDE SL-81
CONE(RAD. END) 1/4″ x 5/8″ TC-74A R160192 1/4″ CARBIDE SL-1
CONE(RAD. END) 5/16″ x 7/8″ TC-74 R160222 1/4″ CARBIDE SL-2
CONE(RAD. END) 3/8″ x 1 1/16″ 14° TC-75 R160258 1/4″ CARBIDE SL-3
CONE(RAD. END) 1/2″ x 1 1/8″ 14° TC-77 R160283 1/4″ CARBIDE SL-4
CONE(RAD. END) 5/8″ X 1 5/16″ 14° TC-78 R160313 1/4″ CARBIDE SL-6
CONE(RAD. END) 3/4″ X 1 1/2″ 14° TC-79 R160349 1/4″ CARBIDE SL-7
TAPER(60° INC/CONE) 1/8″ x 60° JM-1 R155901 1/8″ CARBIDE SJ-42
TAPER(60° INC/CONE) 3/16″ x 60° JM-21 R156759 3/16″ CARBIDE SJ-81
TAPER(60° INC/CONE) 1/4″ x 60° TC-34T R159244 1/4″ CARBIDE SJ-1
TAPER(60° INC/CONE) 3/8″ x 60° TC-35T R159270 1/4″ CARBIDE SJ-3
TAPER(60° INC/CONE) 1/2″ x 60° TC-36T R159300 1/4″ CARBIDE SJ-5
TAPER(60° INC/CONE) 5/8″ x 60° TC-37T R159335 1/4″ CARBIDE SJ-6
TAPER(60° INC/CONE) 3/4″ x 60° TC-38T R159360 1/4″ CARBIDE SJ-7
TAPER(60° INC/CONE) 1″ x 60° TC-39S R159219 1/4″ CARBIDE SJ-9
TREE(RADIUS) 1/8″ x 1/4″ JH-2 R155470 1/8″ or 3/16″ CARBIDE SF-41
TREE(RADIUS) 1/8″ x 1/2″ JH-1 R155445 1/8″ CARBIDE SF-42
TREE(RADIUS) 1/4″ x 1/2″ JH-51 R155536 1/8″ CARBIDE SF-51
TREE(RADIUS) 3/16″ x 9/32″ JH-22 R155500 1/8″ or 3/16″ CARBIDE SF-53
TREE(RADIUS) 3/16″ x 1/2″ JH-23 R156590 1/8″ or 3/16″ CARBIDE SF-81
TREE(RADIUS) 1/4″ x 5/8″ TC-26E R158434 1/4″ CARBIDE SF-1
TREE(RADIUS) 3/8″ x 3/4″ TC-27A R158562 1/4″ CARBIDE SF-3
TREE(RADIUS) 1/2″ x 1″ TC-28 R158653 1/4″ CARBIDE SF-5
TREE(RADIUS) 5/8″ x 1″ TC-28C R158690 1/4″ CARBIDE SF-6
TREE(RADIUS) 3/4″ x 1″ TC-29B R158720 1/4″ CARBIDE SF-7
TREE(RADIUS) 1/8″ x 1/2″ TC-26A (SS) R158409 1/4″ CARBIDE SF-11
TREE(RADIUS) 3/4″ x 1 1/4″ TC-29A R158768 1/4″ CARBIDE SF-14
TREE(RADIUS) 3/4″ x 1 1/2″ TC-29D R158793 1/4″ CARBIDE SF-15
TREE(RADIUS) 7/16″ x 1″ TC-27B R158598 1/4″ CARBIDE SF-4
FLAME 1/8″ x 1/4 JP-1 R155937 1/8″ CARBIDE SH-41
FLAME 5/16″ x 3/4″ TC-52 R159724 1/4″ CARBIDE SH-2
FLAME 1/2″ x 1 1/4″ TC-53 R159750 1/4″ CARBIDE SH-5
FLAME 5/8″ x 1 7/16″ TC-54 R159785 1/4″ CARBIDE SH-6
FLAME 3/4″ x 1 5/8 TC-55 R159815 1/4″ CARBIDE SH-7
BALL 3/32″ JD-2 R155263 1/8″ CARBIDE SD-41
BALL 1/8″ JD-1 R155238 1/8″ CARBIDE SD-42
BALL 1/4″ JD-51 R155329 1/8″ CARBIDE SD-51
BALL 3/16″ JD-21 R155299 1/8″ or 3/16″ CARBIDE SD-53
BALL 3/16″ JD-23 R156528 3/16″ CARBIDE SD-81
BALL 3/16″ TC-11 R157880 1/4″ CARBIDE SD-14
BALL 1/4″ TC-12 R157910 1/4″ CARBIDE SD-1
BALL 5/16″ TC-13 R157958 1/4″ CARBIDE SD-2
BALL 3/8″ TC-14 R157983 1/4″ CARBIDE SD-3
BALL 7/16″ TC-14A R158021 1/4″ CARBIDE SD-4
BALL 1/2″ TC-15 R158069 1/4″ CARBIDE SD-5
BALL 5/8″ TC-16 R158094 1/4″ CARBIDE SD-6
BALL 3/4″ TC-17 R158136 1/4″ CARBIDE SD-7
BALL 1″ TC-18 R158173 1/4″ CARBIDE SD-9
BALL 1/8″ TC-10 (SS) R157855 1/4″ CARBIDE SD-11
CYLINDRICAL(PLAIN) 1/16″ x 1/4″ JA-8 R154880 1/8″ CARBIDE SA-41
CYLINDRICAL(PLAIN) 3/32″ x 7/16″ JA-2 R154842 1/8″ CARBIDE SA-42
CYLINDRICAL(PLAIN) 1/8″ x 9/16″ JA-1 R154805 1/8″ CARBIDE SA-43
CYLINDRICAL(PLAIN) 1/4″ x 1/2″ JA-51 R154970 1/8″ CARBIDE SA-51
CYLINDRICAL(PLAIN) 5/32″ x 1/2″ JA-14 R154910 1/8″ or 3/16″ CARBIDE SA-52
CYLINDRICAL(PLAIN) 3/16″ x 1/2″ JA-21 R154945 1/8″ or 3/16″ CARBIDE SA-53
CYLINDRICAL(PLAIN) 3/16″ x 5/8″ JA-22 R156413 3/16″ CARBIDE SA-81
CYLINDRICAL(PLAIN) 3/16″ x 5/8″ TC-01B R157065 1/4″ CARBIDE SA-14
CYLINDRICAL(PLAIN) 1/4″ x 5/8″ TC-01 R157107 1/4″ CARBIDE SA-1
CYLINDRICAL(PLAIN) 5/16″ x 3/4″ TC-02A R157132 1/4″ CARBIDE SA-2
CYLINDRICAL(PLAIN) 3/8″ x3/4″ TC-02 R157168 1/4″ CARBIDE SA-3
CYLINDRICAL(PLAIN) 7/16″ x 1″ TC-02B R157200 1/4″ CARBIDE SA-4
CYLINDRICAL(PLAIN) 1/2″ x 1″ TC-03 R157235 1/4″ CARBIDE SA-5
CYLINDRICAL(PLAIN) 5/8″ x 1″ TC-04 R157272 1/4″ CARBIDE SA-6
CYLINDRICAL(PLAIN) 3/4″ x 1″ TC-04B R157399 1/4″ CARBIDE SA-7
CYLINDRICAL(PLAIN) 1″ x 1″ TC-05 R157030 1/4″ CARBIDE SA-9
CYLINDRICAL(PLAIN) 1/8″ x 5/8″ TC-01A R157004 1/4″ CARBIDE SA-12
CYLINDRICAL(PLAIN) 5/32″ x 5/8″ TC-01G R157030 1/4″ CARBIDE SA-13
CYLINDRICAL(PLAIN) 3/16″ x 5/8″ TC-01B R157065 1/4″ CARBIDE SA-14
CYLINDRICAL(PLAIN) 3/4″ x 1/2″ TC-04G R157326 1/4″ CARBIDE SA-15
CYLINDRICAL(PLAIN) 3/4″ x 3/4″ TC-04A R157351 1/4″ CARBIDE SA-16
INVERTED CONE 3/32″ x 1/8 JS-2 R156061 1/8″ or 3/16″ CARBIDE SN-41
INVERTED CONE 1/8″ x 3/16″ 10° JS-1 R156036 1/8″ or 3/16″ CARBIDE SN-42
INVERTED CONE 1/4″ x 1/4″ 10° JS-51 R156127 1/8″ or 3/16″ CARBIDE SN-51
INVERTED CONE 3/16″ x 1/4″ 10° JS-22 R156097 1/8″ CARBIDE SN-53
INVERTED CONE 3/16″ x 1/4″ 10° JS-25 R156863(F) 3/16″ CARBIDE SN-81
INVERTED CONE 1/4″ x 5/16″ 10° TC-42 R159608 1/4″ CARBIDE SN-1
INVERTED CONE 1/2″ x 1/2″ 28° TC-43 R159633 1/4″ CARBIDE SN-4
INVERTED CONE 5/8″ x 3/4″ 18° TC-44 R159669 1/4″ CARBIDE SN-6
INVERTED CONE 3/4″ x 5/8″ 30° TC-45 R159694 1/4″ CARBIDE SN-7
CONE(TRUNCATED) 1/8″ x 3/8″ 12° JL-1 R155731 1/8″ CARBIDE SM-41
CONE(TRUNCATED) 1/8 x 5/8″ 7° JL-3 R155810 1/8″ CARBIDE SM-43
CONE(TRUNCATED) 1/4″ x 1/2″ 22° JL-51 R155871 1/8″ CARBIDE SM-51
CONE(TRUNCATED) 1/4″ x 1/2″ 22° TC-35 R158823 1/4″ CARBIDE SM-1
CONE(TRUNCATED) 1/4 x 3/4″ 14° TC-35A R158859 1/4″ CARBIDE SM-2
CONE(TRUNCATED) 3/8″ x 5/8″ 28° TC-36 R158938 1/4″ CARBIDE SM-4
CONE(TRUNCATED) 1/2″ x 1″ 28° TC-37 R158963 1/4″ CARBIDE SM-5
CONE(TRUNCATED) 5/8″ x 1″ 31° TC-37A R158999 1/4″ CARBIDE SM-6
TAPER(90° INC/CONE) 1/8″ x 90° JR-1 R155998 1/8′ CARBIDE SK-42
TAPER(90° INC/CONE) 1/4″ x 90° TC-34S R159062 1/4″ CARBIDE SK-1
TAPER(90° INC/CONE) 3/8″ x 90° TC-35S R159098 1/4″ CARBIDE SK-3
TAPER(90° INC/CONE) 1/2″ x 90° TC-36S R159128 1/4″ CARBIDE SK-5
TAPER(90° INC/CONE) 5/8″ x 90° TC-37S R159153 1/4″ CARBIDE SK-6
TAPER(90° INC/CONE) 3/4″ x 90° TC-38S R159189 1/4″ CARBIDE SK-7
TAPER(90° INC/CONE) 1″ X 90° TC-39S R159219 1/4″ CARBIDE SK-9
TAPER (CONE) 1/4″ x 1/2″ 22° TC-35 R158823 1/4″ CARBIDE SM-1
TAPER (CONE) 1/4″ x 3/4″ 14° TC-35A R158859 1/4″ CARBIDE SM-2
TAPER (CONE) 1/4″ x 1″ 10° TC-35B R158896 1/4″ CARBIDE SM-3
TAPER (CONE) 3/8″ x 5/8″ 28° TC-36 R159938 1/4″ CARBIDE SM-4
TAPER (CONE) 1/2″ x 7/8″ 28° TC-37 R158963 1/4″ CARBIDE SM-5
TAPER (CONE) 5/8″ x 1″ 31° TC-37A R158999 1/4″ CARBIDE SM-6
TREE (POINT) 1/8″ x 1/4″ JK-1 R155561 3/16″ CARBIDE SG-41
TREE (POINT) 1/8″ x 5/16″ JK-2 R155603 3/16″ CARBIDE SG-42
TREE (POINT) 1/8″ x 3/8″ JK-6 R155639 1/8″ CARBIDE SG-43
TREE (POINT) 1/4″ X 1/2″ JK-51 R155690 1/8″ CARBIDE SG-51
TREE (POINT) 3/16″ x 1/2″ JK-22 R155664 1/8″ CARBIDE SG-53
TREE (POINT) 3/16″ x 1/2″ JK-21 R156656C/668F 1/8″ or 3/16″ CARBIDE SG-81
TREE (POINT) 1/4″ x 5/8″ TC-62 R159840 1/4″ CARBIDE SG-1
TREE (POINT) 5/16″ x 3/4″ TC-62A R159876 1/4″ CARBIDE SG-2
TREE (POINT) 3/8″ x 3/4″ TC-64 R160003 1/4″ CARBIDE SG-3
TREE (POINT) 1/2″ x 1″ TC-67 R160076 1/4″ CARBIDE SG-5
TREE (POINT) 5/8″ x 1″ TC-68 R160106 1/4″ CARBIDE SG-6
TREE (POINT) 3/4″ x 1″ TC-69 R160131 1/4″ CARBIDE SG-7
TREE (POINT) 1/2″ X 3/4″ TC-65 R160039 1/4″ CARBIDE SG-13
OVAL 1/8″ x 7/32″ JE-1 R155354 1/8″ CARBIDE SE-41
OVAL 1/4″ x 3/8″ JE-51 R155410 1/8″ CARBIDE SE-51
OVAL 3/16″ x 9/32″ JE-22 R155380 3/16″ CARBIDE SE-53
OVAL 3/16″ x 9/32 JE-23 R156565C/577F 3/16″ CARBIDE SE-81
OVAL 1/4″ x 3/8″ TC-21 R158203 1/4″ CARBIDE SE-1
OVAL 3/8″ x 5/8″ TC-22 R158239 1/4″ CARBIDE SE-3
OVAL 1/2″ x 7/8″ TC-23A R158276 1/4″ CARBIDE SE-5
OVAL 5/8″ x 1″ TC-24 R158306 1/4″ CARBIDE SE-6
OVAL 3/4″ x 1″ TC-25 R158355 1/4″ CARBIDE SE-7
