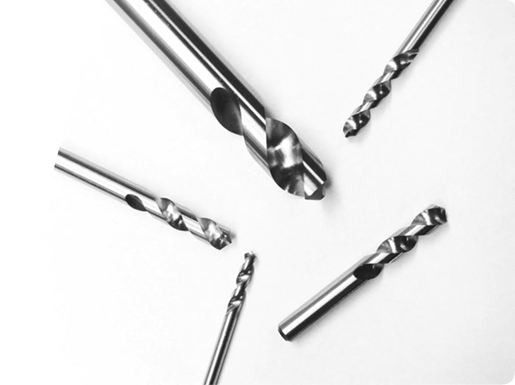

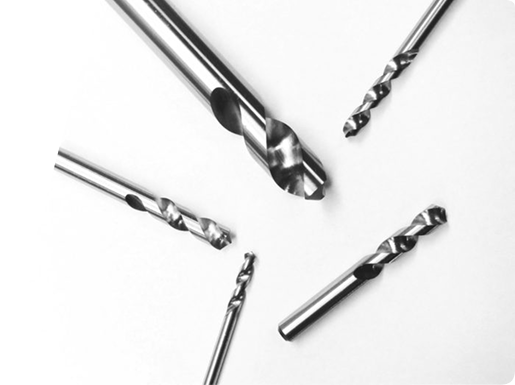

NUCON HSS DRILLS
This is Jarvis’ revolutionary drill design for numerical controlled drilling.
The Nucon features two overall lengths across the size range for easy programming.
More importantly, this short length construction with the high helix flute can eliminate a reaming operation in many applications.
The Nucon Drill is manufactured with premium M7 high speed steel providing longer tool life with more holes per drill.
The self centering, helical point eliminates the need for spot centering.
Listed on Amazon for immediate off-the-shelf delivery!
Nucon means lower production costs!
Engineered especially for close tolerance drilling. The short OAL provides maximum hole accuracy.
Package Quantities: 12Â *unless otherwise indicated
Extra high helix spiral flutes ensure fast chip removal to protect the cutting edge.
Best Uses:
 + Aluminum
 + Ductile Material
+ Non-Ferrous Material
Industry Applications:
 + Fenestration
 + Aerospace
 + Job Shop
 + Diecast
PROUDLY MADE IN USA.
- All listings, pricing, availability and specifications are subject to change at any time without notice.
- We offer competitive discounts for distributors and based on volume.
- Please contact your sales representative or account manager for discounts.
- All prices are in US dollars.
WIRE SIZES
Part ID |
Drill Size |
Decimal Equal |
Price Per Drill |
G193320 |
1 |
.2280 |
$4.70 |
G193318 |
2 |
.2210 |
$4.70 |
G193290 |
3 |
.2130 |
$4.24 |
G193288 |
4 |
.2090 |
$4.49 |
G193276 |
5 |
.2055 |
$4.49 |
G193264 |
6 |
.2040 |
$4.49 |
G193240 |
7 |
.2010 |
$4.49 |
G193239 |
8 |
.1990 |
$4.49 |
G193227 |
9 |
.1960 |
$4.49 |
G193215 |
10 |
.1935 |
$4.49 |
G193203 |
11 |
.1910 |
$4.49 |
G193197 |
12 |
.1890 |
$4.49 |
G193173 |
13 |
.1850 |
$3.72 |
G193161 |
14 |
.1820 |
$3.72 |
G193150 |
15 |
.1800 |
$3.72 |
G193148 |
16 |
.1770 |
$3.72 |
G193136 |
17 |
.1730 |
$3.72 |
G193112 |
18 |
.1695 |
$3.57 |
G193100 |
19 |
.1660 |
$3.57 |
G193094 |
20 |
.1610 |
$3.57 |
G193082 |
21 |
.1590 |
$3.57 |
G193070 |
22 |
.1570 |
$3.57 |
G193057 |
23 |
.1540 |
$3.57 |
G193045 |
24 |
.1520 |
$3.57 |
G193033 |
25 |
.1495 |
$3.57 |
G193021 |
26 |
.1470 |
$3.57 |
Part ID |
Drill Size |
Decimal Equal |
Price Per Drill |
G193010 |
27 |
.1440 |
$3.57 |
G192995 |
28 |
.1405 |
$3.82 |
G192983 |
29 |
.1360 |
$3.82 |
G192971 |
30 |
.1285 |
$3.82 |
G192958 |
31 |
.1200 |
$3.82 |
G192946 |
32 |
.1160 |
$3.20 |
G192934 |
33 |
.1130 |
$3.16 |
G192922 |
34 |
.1110 |
$3.16 |
G192910 |
35 |
.1100 |
$3.16 |
G192892 |
36 |
.1065 |
$3.16 |
G192880 |
37 |
.1040 |
$3.16 |
G192879 |
38 |
.1015 |
$3.16 |
G192867 |
39 |
.0995 |
$2.98 |
G192855 |
40 |
.0980 |
$2.98 |
G192843 |
41 |
.0960 |
$2.98 |
G192820 |
42 |
.0935 |
$2.91 |
G192818 |
43 |
.0890 |
$2.91 |
G192806 |
44 |
.0860 |
$3.50 |
G192816 |
45 |
.0820 |
$3.50 |
G192788 |
46 |
.0810 |
$3.50 |
G192810 |
47 |
.0785 |
$3.50 |
G192808 |
48 |
.0760 |
$3.50 |
G192807 |
49 |
.0730 |
$3.50 |
G192740 |
50 |
.0700 |
$3.50 |
G192804 |
51 |
.0670 |
$3.50 |
G192803 |
55 |
.0520 |
$3.50 |
FRACTIONS
Part ID |
Drill Size |
Decimal Equal |
Price Per Drill |
G192700 |
1/16 |
.0625 |
$4.87 |
G192TTO |
5/64 |
.0781 |
$3.50 |
G192831 |
3/32 |
.0937 |
$2.91 |
G192909 |
7/64 |
.1094 |
$4.49 |
G192960 |
1/8 |
.1250 |
$3.82 |
G193008 |
9/64 |
.1406 |
$3.82 |
G193069 |
5/32 |
.1562 |
$3.57 |
G193124 |
11/64 |
.1719 |
$3.57 |
G193185 |
3/16 |
.1875 |
$3.72 |
G193252 |
13/64 |
.2031 |
$4.47 |
G193306 |
7/32 |
.2187 |
$4.55 |
G193343 |
15/64 |
.2344 |
$4.70 |
G193380 |
1/4 |
.2500 |
$4.70 |
G193410 |
17/64 |
.2656 |
$5.69 |
G193460 |
9/32 |
.2812 |
$5.69 |
G193495 |
19/64 |
.2969 |
$6.28 |
G193525 |
5/16 |
.3125 |
$6.35 |
G193550 |
21/64 |
.3281 |
$7.33 |
G193586 |
11/32 |
.3437 |
$7.33 |
G193616 |
23/64 |
.3594 |
$8.36 |
G193630 |
3/8 |
.3750 |
$8.36 |
G193665 |
25/64 |
.3906 |
$9.01 |
G193690 |
13/32 |
.4062 |
$9.10 |
G193719 |
27/64 |
.4219 |
$9.45 |
G193720 |
7/16 |
.4375 |
$9.91 |
G193732 |
29/64 |
.4531 |
$11.33 |
G193744 |
15/32 |
.4687 |
$11.39 |
G193756 |
31/64 |
.4844 |
$11.78 |
G193768 |
1/2 |
.5000 |
$12.46 |
G193780 |
**9/16 |
.5625 |
$16.35 |
G193792 |
**5/8 |
.6250 |
$21.12 |
LETTERS
Part ID |
Drill Size |
Decimal Equal |
Price Per Drill |
G193331 |
A |
.2340 |
$4.70 |
G193355 |
B |
.2380 |
$4.70 |
G193367 |
C |
.2420 |
$4.70 |
G193379 |
D |
.2460 |
$4.70 |
G193380 |
E |
.2500 |
$4.70 |
G193392 |
F |
.2570 |
$5.69 |
G193409 |
G |
.2610 |
$5.69 |
G193422 |
H |
.2660 |
$5.69 |
G193434 |
I |
.2720 |
$5.69 |
G193446 |
J |
.2770 |
$5.69 |
G193458 |
K |
.2810 |
$5.69 |
G193471 |
L |
.2900 |
$6.28 |
G193483 |
M |
.2950 |
$6.28 |
G193513 |
N |
.3020 |
$6.28 |
G193537 |
0 |
.3160 |
$7.33 |
G193549 |
p |
.3230 |
$7.33 |
G193562 |
Q |
.3320 |
$7.33 |
G193574 |
R |
.3390 |
$7.33 |
G193598 |
s |
.3480 |
$7.33 |
G193604 |
T |
.3580 |
$8.36 |
G193628 |
u |
.3680 |
$8.36 |
G193641 |
V |
.3770 |
$9.45 |
G193653 |
w |
.3860 |
$9.45 |
G193677 |
X |
.3970 |
$9.10 |
G193689 |
y |
.4040 |
$9.10 |
G193707 |
z |
.4130 |
$9.45 |
G193756 |
31/64 |
.4844 |
$11.77 |
G193768 |
1/2 |
.5000 |
$12.46 |
G193780 |
-9116 |
.5625 |
$16.34 |
G193792 |
–51a |
.6250 |
$21.12 |
